Technical work rarely happens at a desk.
Balancing equipment on the floor, holding a laptop with one hand or using an unsuitable ledge slows the job down and risks damage to valuable tools.
ABOUT MAGSTAND UK
A magnetic workstation built for engineers.
Magstand is a portable magnetic laptop support made from two independent folding steel brackets. It creates a practical temporary workspace on suitable steel surfaces—without drilling, clamps or permanent modification.
WHAT IS MAGSTAND?
Support where the work actually happens.

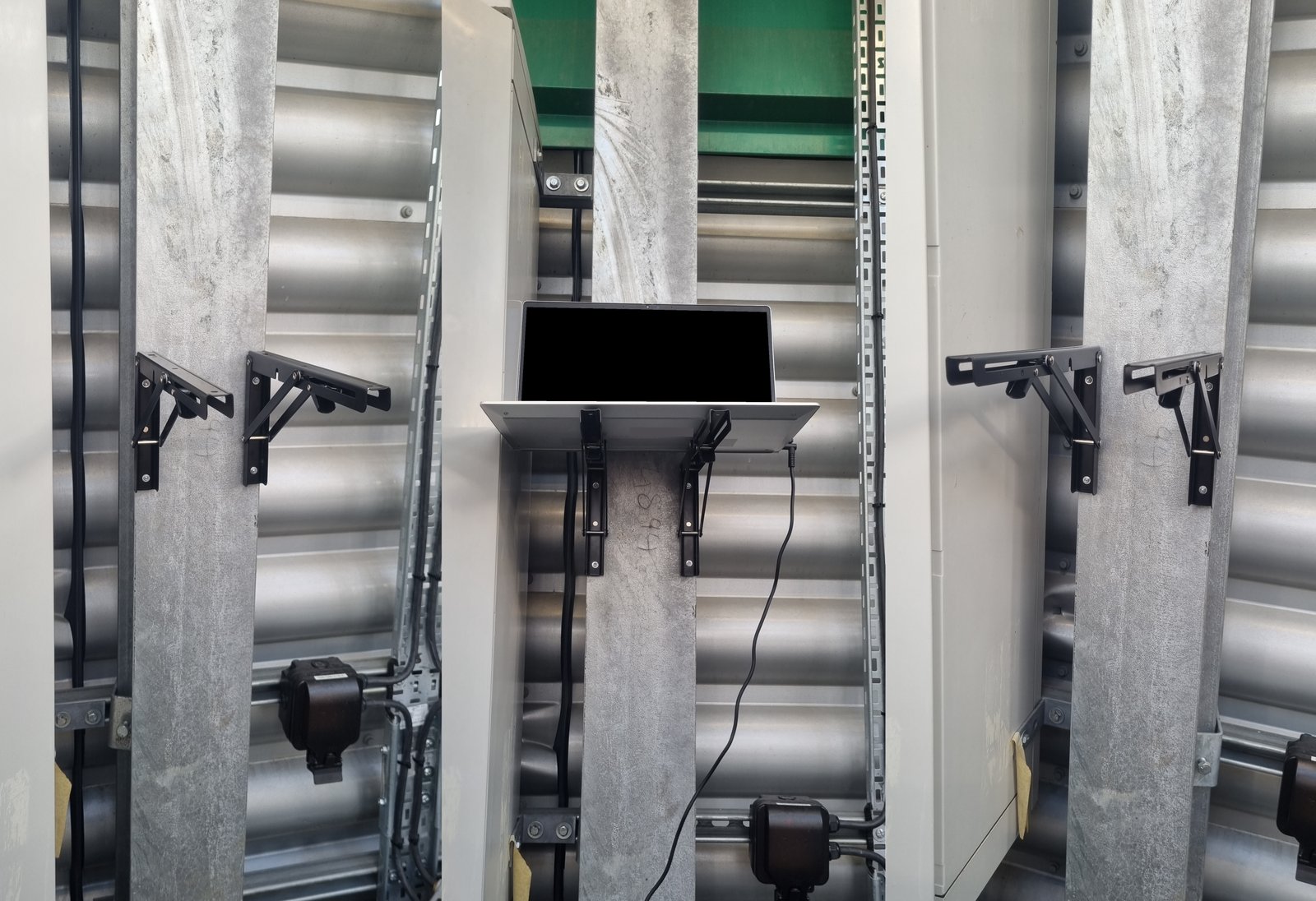

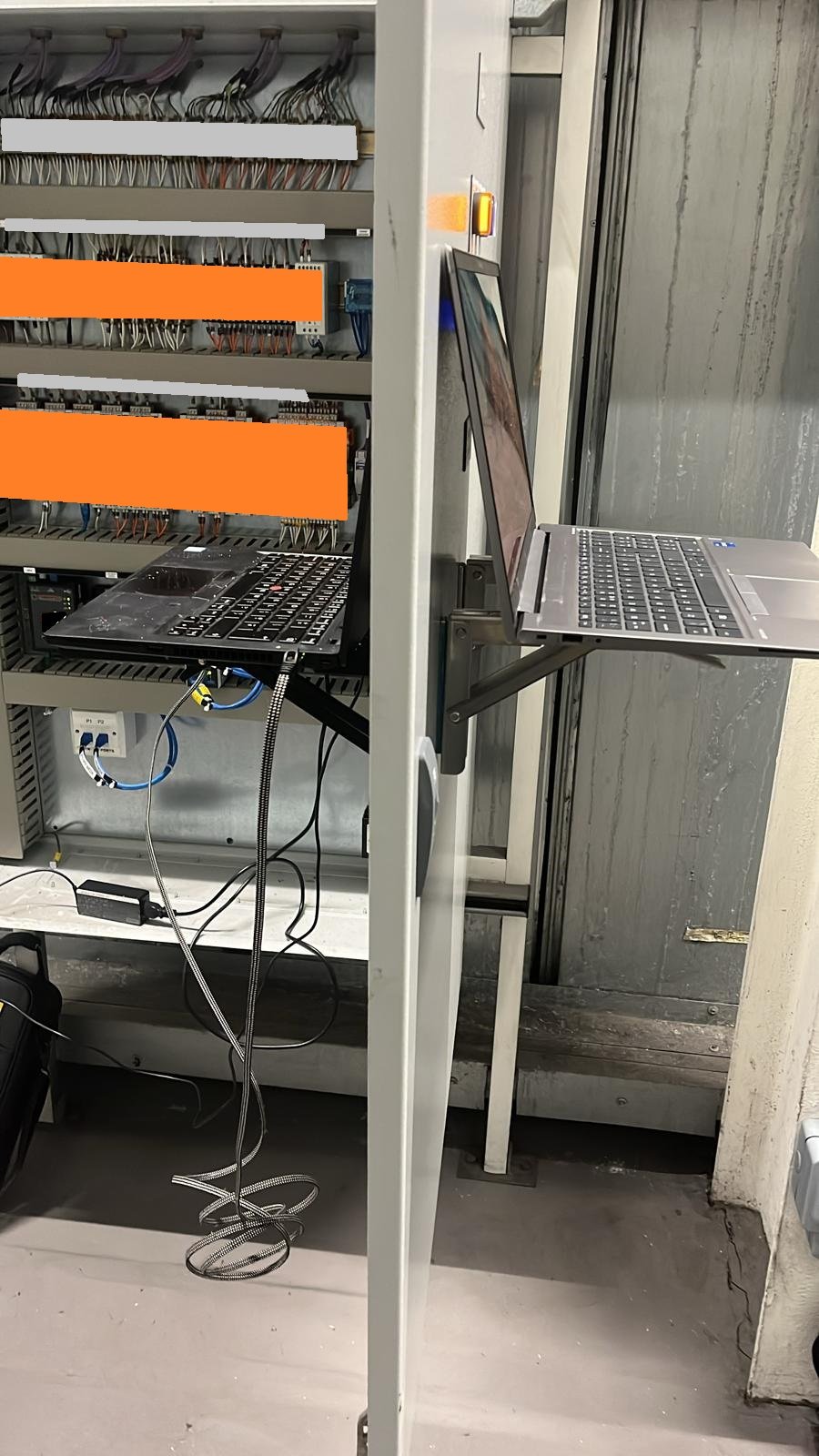

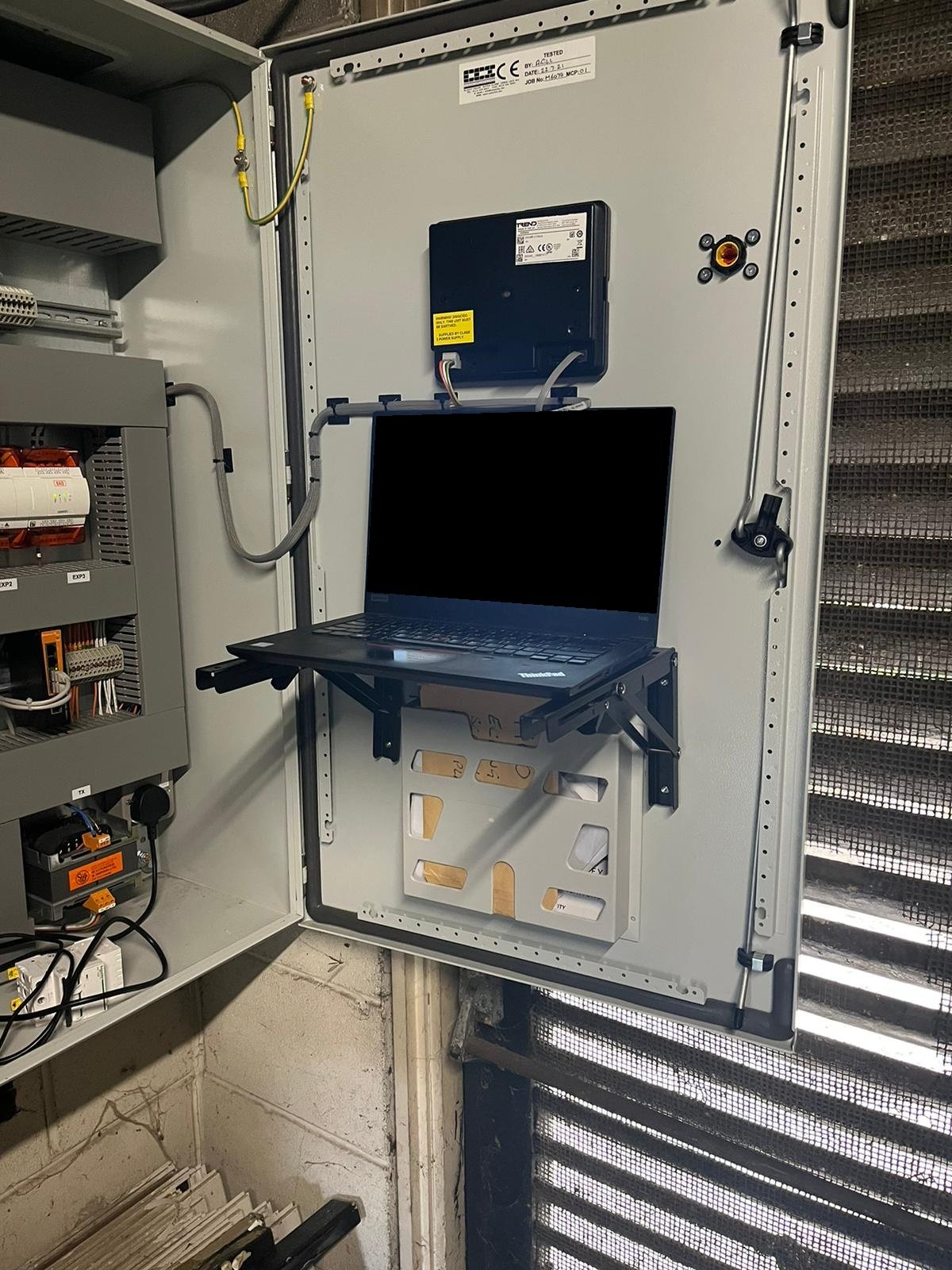

Engineers often work beside control panels, plant equipment and steel enclosures with nowhere safe or convenient to place a laptop, tablet, meter or diagnostic tool. Magstand turns suitable existing steelwork into a temporary support system that can be positioned around the job.
A workspace that travels in your tool bag.
Two compact magnetic brackets attach independently, allowing the working width to be adjusted around cables, trunking, pipework and other site obstructions.
DESIGNED FOR FIELD WORK
Simple hardware. Useful engineering.
Magstand combines strong neodymium channel magnets, powder-coated mild steel and a push-button locking hinge. The result is a compact magnetic workstation with no loose parts and no installation process.
Independent positioning
Set the brackets at the width your equipment needs and work around real-world obstacles.
Magnetic mounting
Attach to a suitable ferromagnetic steel surface without drilling or permanent fixings.
Push-button hinge
The mechanical locking hinge holds each support at 90 degrees during use.
Compact storage
Each bracket folds to 300 × 30 × 30 mm for transport in a tool bag or case.
Portable pair
Both brackets weigh 0.80 kg combined, keeping the system practical for everyday carry.
No installation
Set up, complete the task and remove the brackets without modifying client equipment.
HOW MAGSTAND WORKS
Four steps to a better workspace.
Always assess the mounting surface and working environment first. Magstand should only be used when both brackets are securely attached and the equipment can rest safely across them.
Choose the surface
Find a clean, suitable magnetic steel surface close to the equipment you are working on.
Open and attach
Open each bracket and firmly position the magnetic base against the steel.
Set the width
Position the second bracket so the equipment is supported evenly and securely.
Check before use
Test stability, confirm the hinges are locked and only then place equipment across the pair.
MAGSTAND SPECIFICATIONS
Compact by design.
One Magstand workstation consists of two independent magnetic folding brackets.
- Materials
- Neodymium channel magnets, powder-coated mild steel
- Supplied as
- One pair / two brackets
- Pair weight
- 0.80 kg
- Folded dimensions
- 300 × 30 × 30 mm
- Open dimensions
- 300 × 30 × 150 mm
- Maximum vertical load
- 14 kg combined*
- Locking mechanism
- Push-button hinge
*Load guidance: The stated 14 kg maximum applies to the pair combined. For maximum hold, use steel more than 5 mm thick and distribute the load evenly toward the rear, nearest the magnets. Holding force depends on the mounting surface. Test stability before every use.
SUITABLE APPLICATIONS
Made for technical environments.
Magstand is intended for engineers and technicians who need temporary laptop or tool support on suitable steel infrastructure. It is particularly useful where floor space is limited or permanent shelves are impractical.
BMS control panels
HVAC systems
Data-centre cabinets
MCC boards
Electrical switchboards
Industrial plant rooms
Mechanical rooms
Workshop equipment
Rail signalling cabinets
Lift control panels
Renewable-energy systems
Marine engine rooms
COMMON QUESTIONS
Before using Magstand.
Will Magstand attach to any metal?
No. It requires a suitable ferromagnetic steel surface. It will not attach securely to aluminium, many grades of stainless steel or non-metallic surfaces.
Is the 14 kg rating for one bracket?
No. The stated maximum vertical load is 14 kg for the pair combined and depends on the specified mounting and load conditions.
How do I remove the brackets?
Remove all supported equipment first. Hold the front of the bracket, tilt it sideways to break the magnetic contact, then lift it away. Press the locking button before folding it closed.
Can I use it inside a live electrical panel?
Only work within your organisation’s safe system of work and electrical safety procedures. Assess exposed conductors, clearances, falling-object risk and the suitability of the mounting surface before introducing any tool or support.
What is included with an order?
One order contains one Magstand workstation: a pair of two independent magnetic folding brackets. The laptop and equipment shown are not included.
